Paub meej rau cov khoom

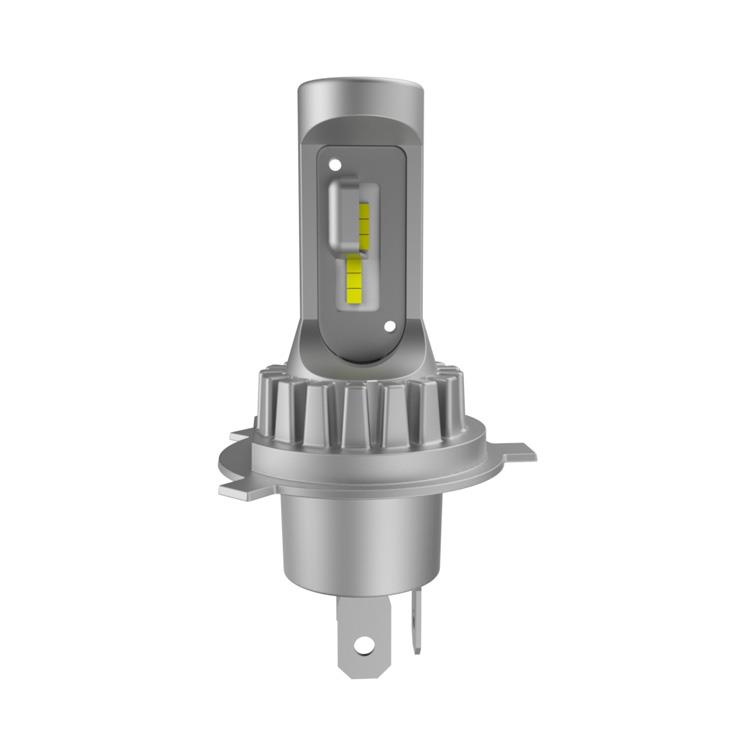

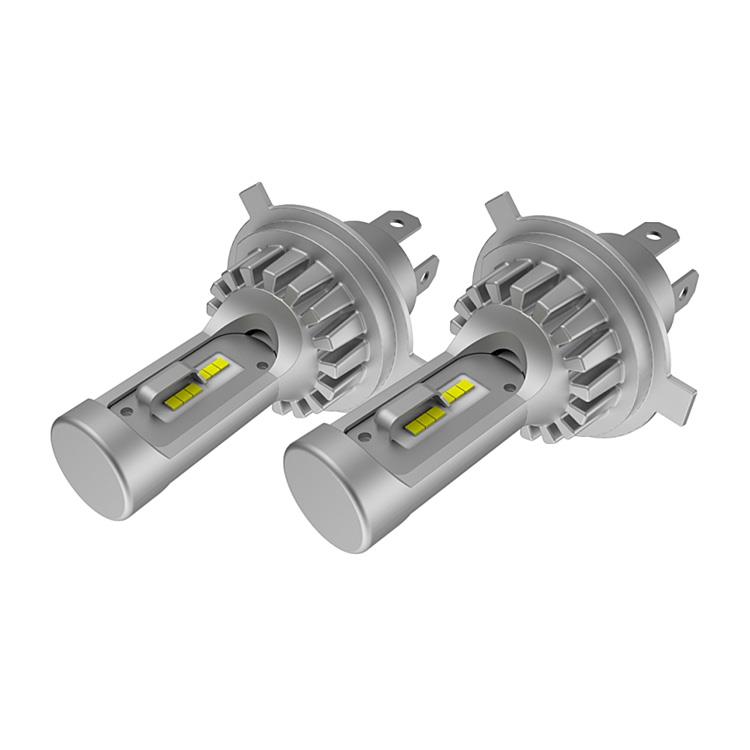

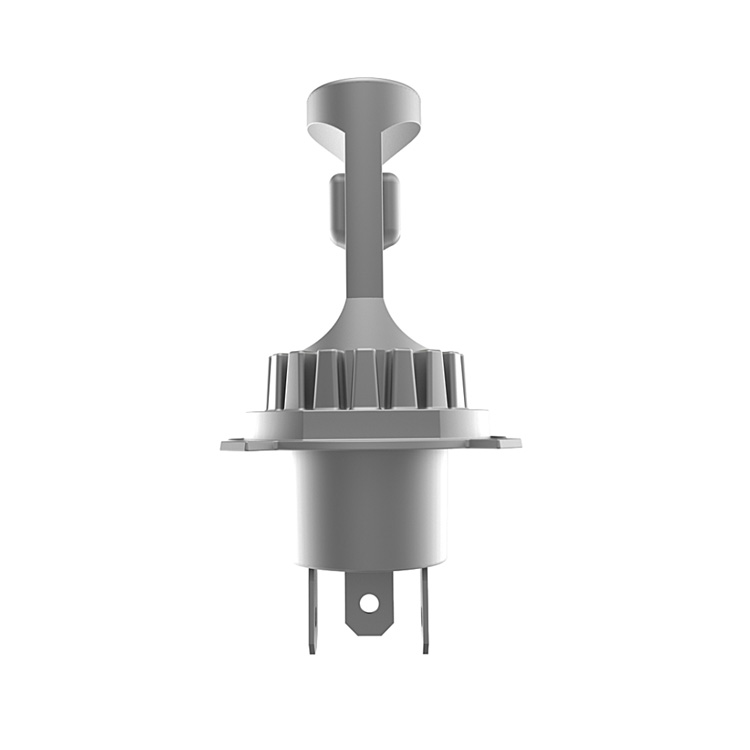

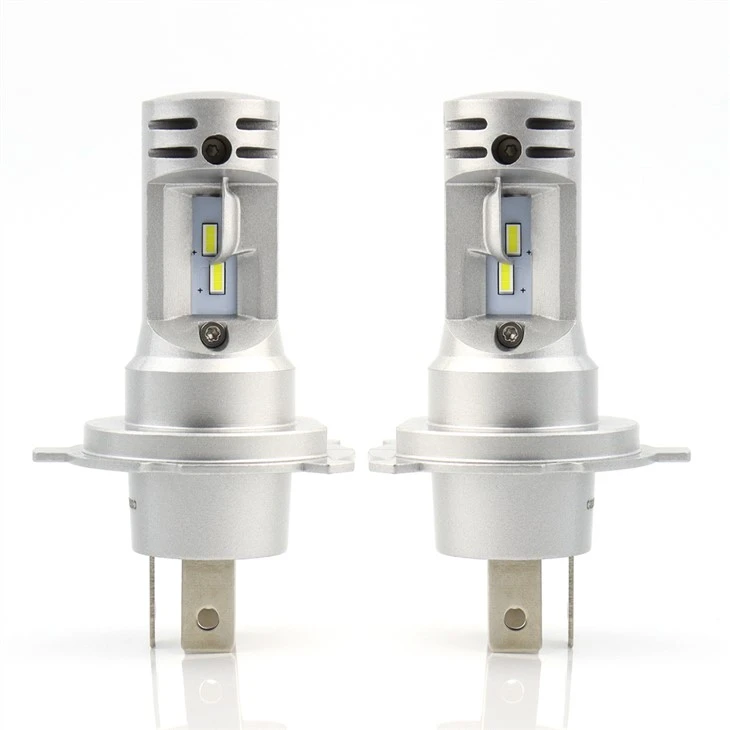

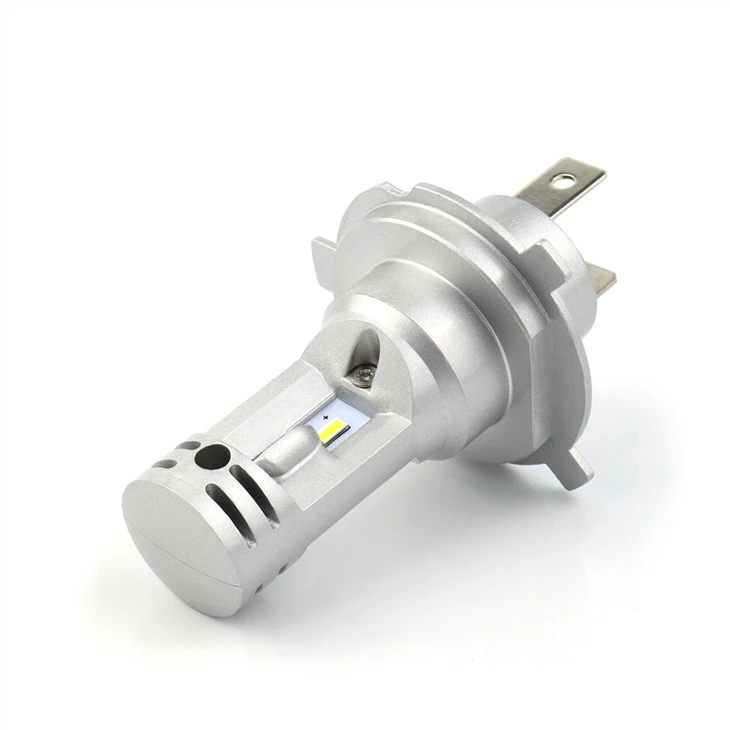

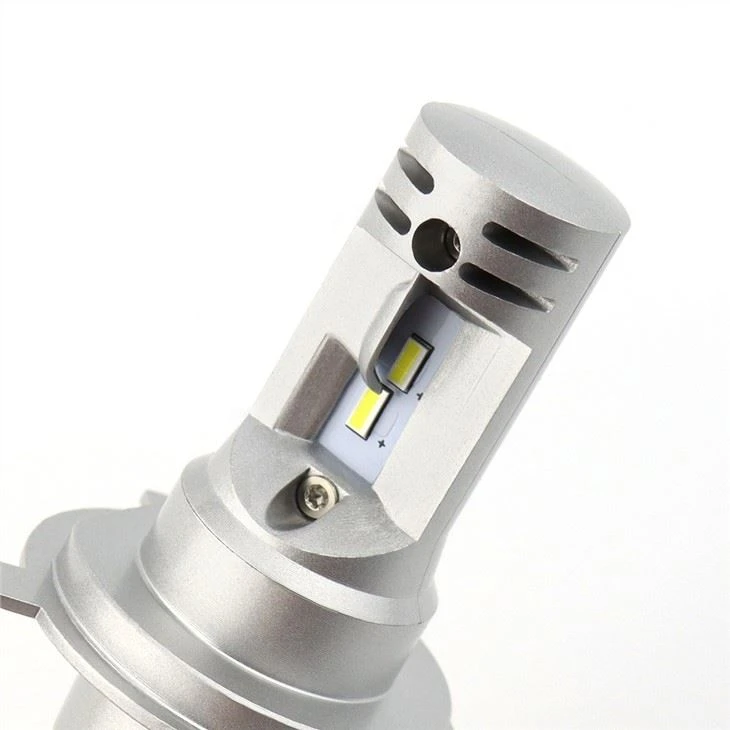

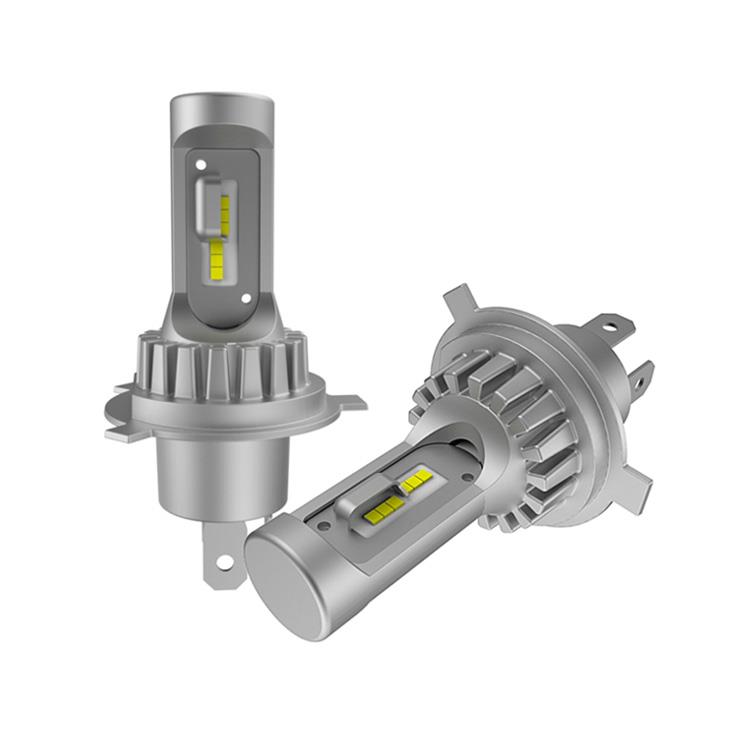

Samll Loj LED Fog Teeb H4
| Qhov (socket). | Lsk-V10P-H4W-4000LM |
| Hwj chim | 20W |
| LED Style | LED fog teeb |
| Kev nkag siab (mA) | 2.4A±0.2A |
| Qhov hluav taws xob | DC 12V-24V cov zis |
| Beam Angle | 360 Degree |
| Daim ntawv thov | Mini Fog Teeb H4 |
| Beam Lumens | 4 000 LM |
| Ntev Lifespan | Ntau tshaj 30000 teev |
| Xim kub | 6500K |
| Warranty | 2 xyoo |
Nta
1.Original tsim raws li halogen noob, concentrated txheem nrog me me, ntsaws thiab ua si, yooj yim rau installation
2.Adopted 0.8mm superconducting txhuas tsim kom txo cov thermal tsis kam thiab ua kom kub ceev ceev
3.Integrated tag nrho nyob rau hauv ib tug tsim, zoo dua los daws qhov teeb meem ntawm tsis muaj peev xwm rau nruab vim qhov chaw tsis txaus ntawm lub teeb
Daim ntawv qhia txog teeb pom kev zoo
Xim Parameter
Chroma Coordinate:x=0.3167 y=0.3251 u=0.2021 v=0.3112 Duv=0.0007Chroma Coordinate:u'=0.2021 v=0.4668
CCT.:CCT=6317K Dominant: d=485.1nm Barycenter: b=544nm Peak wavelength: p=448.6nmFWHM: 20.4nm Purity:Pe=6 288% Red Ratio:R=0.127 Green Ratio:G{{2}Blue Ratio:G=0.838 CRI.:Ra=72.38R 1=72 R 2=75R 8=64 , R 9=-19R15=69
R 3=75R10=38
R 4=75R11=72
R 5=73R12=40
R 6=65R13=72
R 7=80R14=86
Luminosity Parameter
Luminous Flux (380-780nm): 1484.77m Optical Fais Fab (380-780nm): 4.655W Efficint (380-780nm): 114 4Im/W
Hluav taws xob Parameter
Voltage: U=12V Tam sim no: I=1082mA / Fais fab: P=12.98W PF: PF=1
Ntaus lub xeev
Wavelength Ntau: 380nm-780nm Wavelength Interval: 1nm

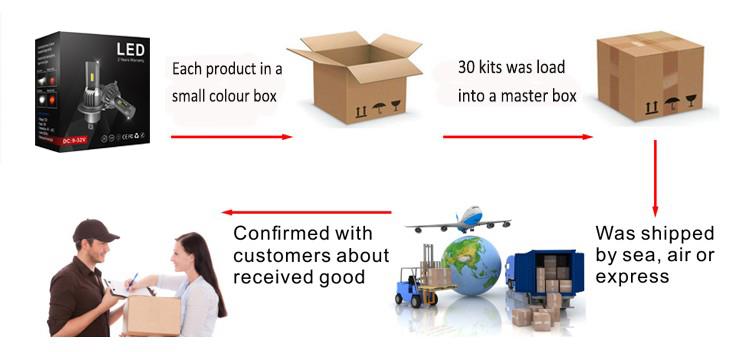

Pob thiab shipping
Yog tias koj xav tau koj tus kheej lub thawv thov ua siab zoo tiv tauj peb, koj tuaj yeem muab peb cov duab kos lossis qhia rau peb koj lub tswv yim.Peb yuav ua tus tsim raws li koj qhov kev thov.
PebKev pabcuam
※ Koj lub logo tuaj yeem ua laser ntawm qhov muag teev dawb

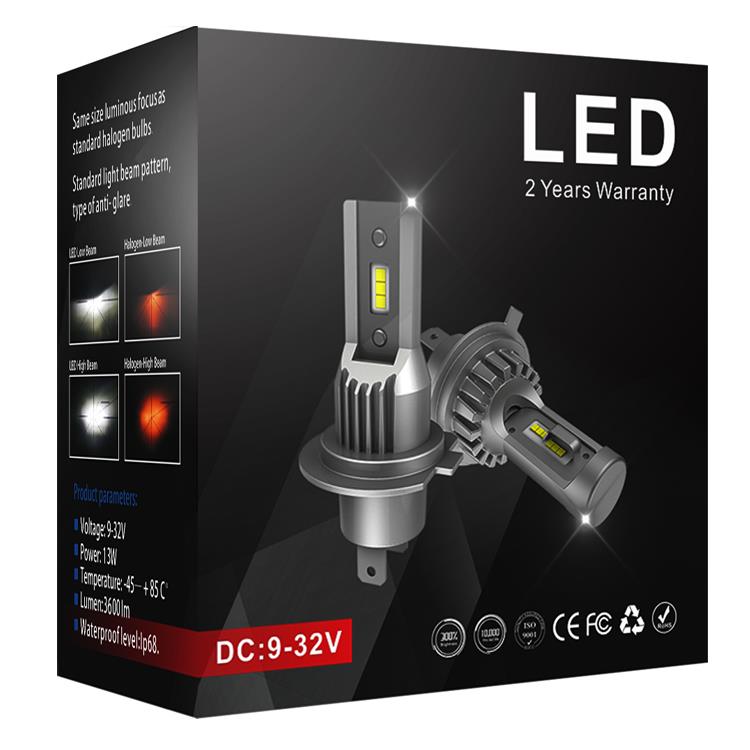

※ Tau txais koj lub thawv xim xim dawb.
※ Muaj los kho OEM tsim coj lub teeb taub hau thiab mini coj qhov muag teev.
※ Nrog ROHS thiab ISO thiab CE daim ntawv pov thawj
Peb cov kev pabcuam OEM muaj zog-2
MOQ<100kits ,delivery time within 1-5working days.
MOQ>500kits, lub sijhawm khoom xa tuaj hauv 5-10 hnub ua haujlwm.
MOQ>1000kits, lub sij hawm xa tuaj hauv 10-15 hnub ua haujlwm.
Yog tias koj muaj kev lees paub, thov xa peb cov duab raws li daim duab hauv qab no
Txog Peb
Raws li LED teeb pom kev zoo thawj cov chaw tsim khoom thaum peb ua lag luam HID tshaj 18 xyoo thiab 15 xyoo coj nyob rau hauv Suav teb.Our Hoobkas los ntawm 80 square meters txoj kev loj hlob mus rau niaj hnub no 8000 square meters, peb muaj peev xwm muab ntau NEWEST LED headlight cov ntaub ntawv thiab OEM kev pab cuam rau koj uas lwm lub tuam txhab ua tsis tau.
Peb muaj kev ntseeg siab thiab ntseeg tias peb cov khoom yuav ua kom zoo dua nyob rau hauv tib lub teb rau nws pib teeb pom kev zoo.
Pab neeg muag khoom
International Show
Cov khoom lag luam puv

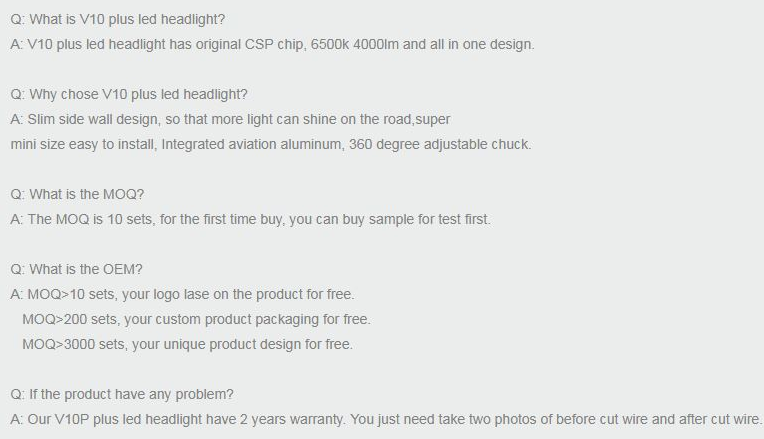

FAQ
